Manual fanlight openers

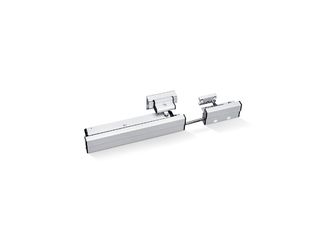

OL 90 N top-hung outward-opening Fanlight opener for ourward-opening top-hung leaves with an opening width of 170 mm
- Achieves the full opening width of 170 mm for all leaf heights
- The opening width can be adjusted
- Little space necessary thanks to flat design of the scissors
- Integrated leaf locking mechanism in the scissors ensures secure locking
- Special locking mechanism increases safety and air-tightness
- Simple scissor re-setting or unhooking by pressing the release button facilitates window cleaning from the inside and outside
- Completely pre-mounted assembly groups facilitate installation
- Leaf bracket fits all overlap heights and materials
Application Areas
- Convenient daily ventilation for rooms and staircases
- Outward-opening top-hung windows with a reveal depth of 0-60 mm
- Automation by E 212 electric linear drive
- Installation on wooden, plastic or aluminium windows
- Leaf installation
Technical data
OL 90 N top-hung outward-opening | |
Length | 274 mm |
Depth | 54 mm |
Height | 61 mm |
Opening width (max.) | 170 mm |
Leaf width (min.) | 400 mm |
Leaf height (min.) | 370 mm |
Leaf weight (max.) | 80 kg |
Fitting stroke | 54 mm |
Adjustable opening width (stroke reduction) | Dependent |
Leaf locking mechanism integrated in the scissors | Yes |
Scissor unhooking by release button | Yes |
Burglar-resistant locking mechanism (SKG-certified) | Yes |
